Quick Details

Place of Origin: Zhejiang, China (Mainland)

Brand Name: HOGN

Model Number: JBC

Application: used for branch connection of building distridution system

Certificate: CE

Type: Clamp

Gender: Female

Supply Ability

Supply Ability

100000 Piece/Pieces per Month

Packaging & Delivery

Port

shanghai

Lead Time:

Quantity(Pieces)    1 – 50000    >50000

Est. Time(days)    30    To be negotiated

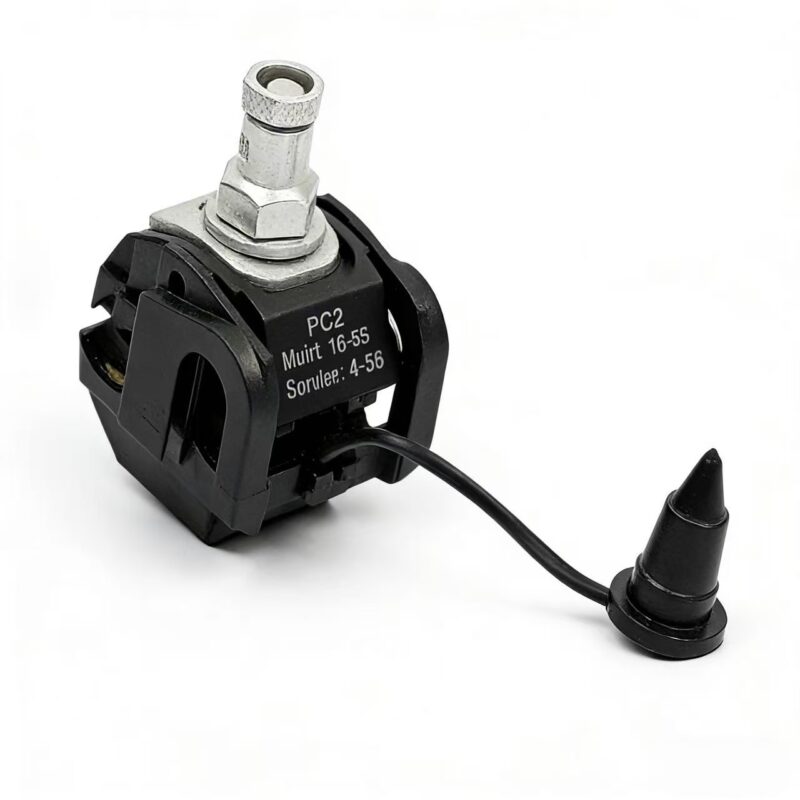

Insulation Piercing Connector

The JBC insulation piercing connector are applicable for all types of LV-ABC conductor as well as connections in service line system, Installation of JBC can be easily done by tightening the bolts to force the teeth penetrate the insulation is avoided for both lines.

> Main line: Insulated aluminium cable

> tap line:Insulated aluminium cable

> Body is molded from tough and weather resistant materials

> Special designed shear head bolt allows efficient installation under controlled shear torque which ensure the contact teeth properly penetrate the conductor without damaging the mechanical strength of the conductor

> Tested for water-tightness at the voltage of 6 kV for 1 min under water

> Safe live-line installation

> Seals and grease are applied to prevent moisure entering the cable and connector which guarantees excellent waterproof and corrosion resistant performance

> End cap is attached to the body. No loose parts could fall to ground during installation

> Standard: EN 50483-4, NFC 33-020, NFC 33-004

Basic Data

Type	Main Conductor Size(mm²）	TaP Conductor Size(mm²）	Bolts
JBC10-95/1.5-10	10-95	1.5-10	1
JBC16-70/16-70	16-70	16-70	1
JBC16-95/2.5-35	16-95	2.5-35	1
JBC25-95/25-95	25-95	25-95	1
JBC25-120/25-120	25-120	25-120	1
JBC35-150/35-150	35-150	35-150	1
JBC35-185/35-185	35-185	35-185	2
JBC95-240/95-240	95-240	95-240	2
